This is usually the first question people ask about frameless shower doors.
No metal frame around the edges. Small gaps near the hinges. Glass that seems to be doing all the work on its own.
So, yes, it is reasonable to wonder where the water goes.
A frameless enclosure should not leak when it has been measured correctly, designed around the way the shower sprays, and installed by someone who knows what they are doing. The missing frame is not the problem. Bad measurements, poor drainage, weak seals, and a door placed in the wrong spot are.
Water is predictable. Give it an opening and it will find it.
Key Takeaways
- Frameless shower doors do not automatically leak.
- Accurate measurements matter more than having a thick metal frame.
- The door, seals, hinges, curb, and showerhead position all need to work together.
Why People Think Frameless Doors Leak
Some of the concern comes from older enclosures that were not installed very well to begin with.
You have probably seen one. Water runs out near the bottom corner. The door hangs slightly crooked. A clear seal has turned yellow, split, or fallen off entirely.
That is not a frameless-glass problem. It is an installation or maintenance problem.
DIY kits add to the reputation. They are usually made in standard sizes, which works only when the shower opening is equally standard.
Most are not.
Walls lean. Curbs slope. Tile sticks out farther in one area than another. A ready-made door cannot adjust itself around any of that, so installers end up with gaps where gaps should not be.
The door swing matters too. If the door opens toward the strongest spray or sits directly opposite the showerhead, water has a much easier path out.
Sometimes the only issue is a missing seal.
Small detail. Wet floor.
What Actually Prevents Water Leaks
There is no single part doing all the work.
A leak-free enclosure comes from several small things being correct at the same time.
Accurate measurements
The glass needs to follow the actual opening, not the dimensions somebody wrote down before the tile was installed.
A technician measures the width at more than one point. They check wall angles, floor level, and how the curb slopes.
A half-inch difference between the top and bottom of a wall may not look dramatic.
It is dramatic to a glass door.
Level installation
The door has to hang squarely.
If one side sits lower, the bottom gap may widen. The door may drag against the curb, refuse to close properly, or slowly swing open on its own.
None of those things improve with time.
Correct hinge placement
Hinges control how the door sits and moves. Their position affects the gaps along the sides, the weight distribution, and whether the panel closes cleanly.
They also need solid support behind the finished surface.
A heavy glass door attached to weak backing is not something you want to discover through experience.

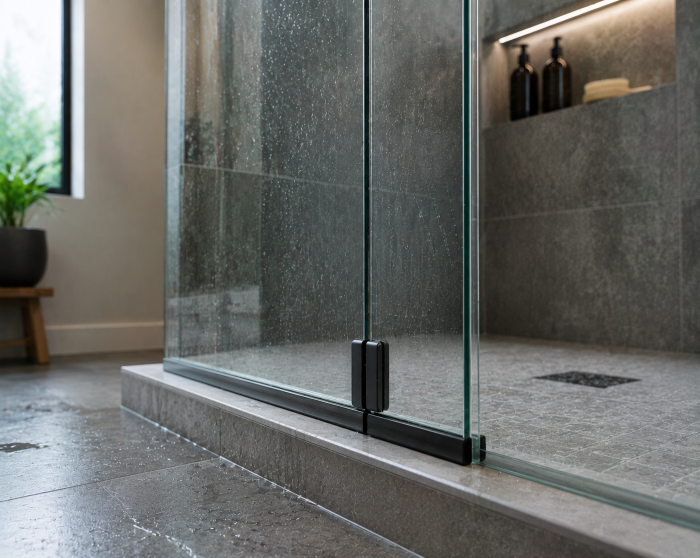

Bottom sweeps and side seals
Frameless does not mean seal-free.
A clear bottom sweep helps guide water back into the shower. Side seals close narrow gaps near fixed panels or walls. They are less noticeable than a bulky frame, but they still have a job.
Seals do wear out eventually. They can become stiff, cracked, or cloudy. Replacing them is usually simple and far cheaper than replacing the glass.
The curb slope
The top of the shower curb should slope gently inward.
Not flat. Definitely not outward.
When water lands on the curb, that slight angle sends it back toward the drain. If the curb tilts toward the bathroom, even the best shower door is fighting gravity every day.
Gravity tends to win.
Why Custom Measurements Matter
No two shower openings are exactly alike.
That sounds like contractor language until you put a level against the wall.
Even newer bathrooms can have slight variations. In older homes, the differences are often more obvious. Floors settle. Walls move. Tile follows whatever surface was underneath it.
One wall may lean inward. The curb may be higher on the left. A corner that looks square may actually be 88 or 92 degrees.
Custom measurements account for those details before the glass is fabricated. If you want a full breakdown of that visit, see what to expect during a shower door measurement appointment.
That is the important part: before.
Tempered glass cannot simply be cut down on-site because the opening turned out narrower than expected. Holes and notches also need to be planned before tempering.
Measure wrong, make it again.
A professional measurement costs far less than a second glass panel.
Design Choices That Help Keep Water Inside
Some shower layouts are easier to contain than others.
A fixed panel can block the area where most water splashes. A return panel can protect an open side. In larger walk-in showers, a short splash panel may be enough to stop water from reaching the floor outside. Our guide to maximizing small bathrooms with custom frameless glass shows how these layout choices play out in tight spaces.
Door overlap matters too. Where one panel meets another, the layout should guide water inward rather than leave a direct path through the gap.
Then there is the opening direction.
Whenever possible, the door should open in a way that does not pull water out with it or sit directly in the shower spray. The showerhead should aim toward a tiled wall or fixed panel, not straight at the door seam.
This sounds obvious.
It is also missed more often than you would think.
A good installer looks at how the shower will actually be used. Where you stand. Where the water hits. Where it runs when the door opens.
The drawing is only part of the job.
Signs Your Existing Shower Door Was Installed Incorrectly
A little water around the threshold after someone opens a dripping door is normal. A puddle forming during every shower is not.
Common warning signs include:
- water escaping from the same corner each time;
- large or uneven gaps around the door;
- the glass rubbing against the curb or fixed panel;
- a door that swings open instead of staying closed;
- cracked, loose, or missing seals;
- water running off the curb toward the bathroom.
Sometimes the fix is straightforward. A new sweep, hinge adjustment, or better seal may solve it.
Other problems go deeper. If the curb slopes the wrong way or the glass was made for an uneven opening without accounting for it, the solution may involve more work. This is especially common when modernizing older Brooklyn bathrooms, where settling and shifting walls are part of the territory.
It is still worth having someone inspect it before assuming the whole enclosure needs replacement.
Leak Prevention Starts Before the Glass Arrives
A frameless shower door should feel simple once it is installed.
The door closes. Water stays inside. You stop thinking about it.
Getting to that point takes careful measuring, a sensible layout, correctly placed hardware, and finished surfaces that direct water where it belongs.
So no, frameless shower doors do not all leak.
Poorly planned ones do.
